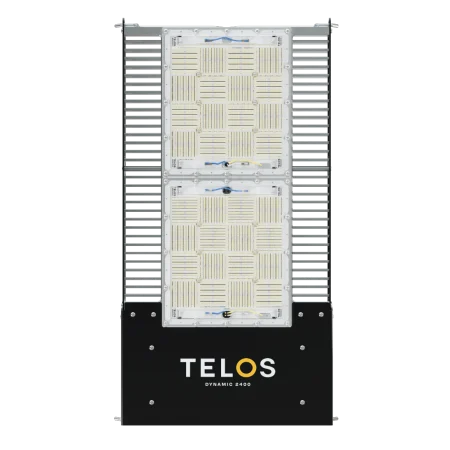

🌿 Telos Dynamic 2400
Peak Performance for Commercial Cultivation
The Telos Dynamic 2400 is the most powerful fixture in the Dynamic range—engineered for large-scale and industrial grow operations. With superior optical engineering and unmatched energy efficiency, it delivers precise, uniform light that promotes consistent, high-yield crops across large canopies.
⚙️ Performance Specifications:
-
PPF Output: 2400 µmol/s
-
Power Draw: 800W
-
System Efficiency: 3.0 µmol/J
-
Radiometric Output: 544W (68% radiometric efficiency)
-
Coverage Area: Optimized for 1.2 × 1.2 m tents
-
Recommended Hanging Height: 65 cm above canopy
-
BTU Output: 2730 BTU/hr
-
Beam Angle: Telos Batwing distribution for over 90% uniformity
🌈 Next-Gen Spectrum: PWS1
Telos’ PWS1 (Polar White Spectrum) uses a finely tuned mix of:
-
430nm violet pump LEDs for increased yield, flavonoid production, and pathogen resistance
-
Enhanced blue & green light for deeper canopy penetration (up to 1m)
-
Reduced red wavelengths to prevent upper canopy overgrowth and photobleaching
-
Precise spectrum ratio:
-
UV: 1.0%
-
Violet: 5.9%
-
Blue: 19.8%
-
Green: 34.7%
-
Red: 37.6%
-
Far Red: 1.0%
-
🛡️ Build Quality & Durability
-
IP66-rated sealed housing with mechanical gaskets for water and dust resistance
-
CNC-machined 6063 aluminum heatsink for passive cooling
-
All components mechanically mounted—no glue or single-use plastics
-
Fully upgradeable and serviceable – designed for longevity
-
Weight: 8.8kg
-
Dimensions: 596 x 308 x 71 mm
📱 Advanced Power & Control
-
High-efficiency LED driver with 97% AC conversion efficiency
-
Integrated surge protection and inrush current limiter
-
Growcast compatible for wireless dimming, automation, and daisy-chaining (up to 3 fixtures at 220VAC)
-
0–10V dimming range: 10–100%, with power-off capability
-
Optional resistive dimmer for manual control
📊 Grow Stage Settings (Efficiency Profiles):
| Stage | Output (% Power) | Power Consumption (W) | Efficiency (µmol/J) |
|---|---|---|---|
| Propagation | 13% | 107.8 W | 3.3 |
| Vegetative | 28% | 242.8 W | 3.3 |
| Flowering | 64% | 553.4 W | 3.2 |
| CO₂-Enhanced Flowering | 78% | 682.2 W | 3.1 |
🌞 Telos Dynamic 2400 – PPFD Map
This light map illustrates the PPFD (Photosynthetic Photon Flux Density) distribution of the Telos Dynamic 2400 when installed in a 1.2 × 1.2 m grow tent and hung at the optimal height of 65 cm from the canopy.
📏 Grow Room: 1.2 × 1.2 m
📐 Hanging Height: 65 cm
💡 Light Coverage Uniformity:
-
Average PPFD: 1364 µmol/m²/s
-
Minimum PPFD: 1282 µmol/m²/s
-
Maximum PPFD: 1417 µmol/m²/s
-
Min:Avg Uniformity: >90%
-
Min:Max Uniformity: >85%
This exceptional uniformity is enabled by Telos’ batwing optical lens, which ensures consistent light coverage with no hot spots—ideal for both full canopy penetration and even flowering.
🔢 Efficiency Settings for 1.2 × 1.2 m Room:
To achieve specific light intensities for different growth stages:
| Growth Stage | PPFD Target (µmol/m²/s) | Fixture Output Setting |
|---|---|---|
| Flowering (Standard) | 1000 | 64% Power |
| Flowering (With CO₂) | 1200 | 78% Power |
| Vegetative | 450 | 28% Power |
| Propagation | 200 | 13% Power |
🔌 Daisy Chain Compatibility
| Power Source | 120VAC | 220VAC |
|---|---|---|
| 10A Plug | 1 Light | 2 Lights |
| 13A Plug | 1 Light | 3 Lights |
| 16A MCB | 2 Lights | 4 Lights |
| 24A MCB | 3 Lights | 6 Lights |
| 32A MCB | 4 Lights | 8 Lights |
📦 Optional Accessories
-
Growcast Controller (wireless app-based automation)
-
Resistive Dimmer (manual dimming dial)
-
AC T-Connector & AC Link Cable (daisy chain power)
-
Dimming T-Connector & Link Cable (daisy chain dimming)
-
Unistrut Bracket (mount directly to C-profile rails)
🛡️ Warranty & Certification
-
Standard Warranty: 3 Years (extendable to 5 years upon registration)
-
Certifications: CE, UKCA, Class 1 Electrical & Photobiological Safety
-
Serviceability: Easy to replace or upgrade individual parts—no returns needed for most issues
Ready to scale your grow with precision and confidence?
The Telos Dynamic 2400 is your commercial-grade solution for consistent, high-yield cultivation.
✅ Made in the UK | ✅ Engineered for Longevity | ✅ Certified for Safety
